Power Station Globe Valves

API, BS1873 Globe Valve
1500Lbs and 2500Lbs
Pressure Seal
Straight and Angle pattern
BB Bolt Bonnet
OS&Y Outside Screw and Yoke
Solid and Plug/Regulate Disc
Renewalbe Seat Rings

Valvulas Globo Class 150# -2500# /PN 10 16

Diâmetros: 2"- 20"
(ANSI/150LB/300LB)
Construção: ANSI B 16.34
Face a Face: ANSI B 16.10
Flange: ANSI B 16.5
Fluídos: Água, Óleo e Vapor
Temperaturas: -29 à +800

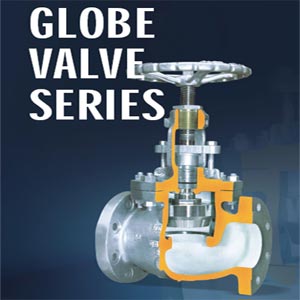

Globe valve

0. Impactor Handwheel.
1. Globe valve Stem Nut replaceable in the line.
2. Revolving rising stem with precision ASME thread.
3. Stem Packing is designed for optimum control of fugitive emissions leakage to atmosphere.

WINDMILL VLAVE Globe Stop Valve

WINDMILL VLAVE Globe Stop Valve, also named SDNR Globe Valve. Not only have globe valve's function, but also has check vlave's function.Size: 2" to 20",Pressure: ANSI Class150LB to 2500LBS,Material: Carbon Steel, Forged Steel, Stainless Steel, Duplex, Super Duplex Steel. And so on,Ends: Raise Flange, RF, RTJ,Butt Weld

Forged Steel Globe Valve

* Forged Steel Globe Valve Design:
API 602: Steel Gate Valve, Globe Valve and Check Valve for Size DN 100 and Smaller for the Petroleum and Natural Gas Industries BS 5352: Specification for Steel Wedge Gate, Globe and Check Valves 50 mm and Smaller for the Petroleum, Petrochemical and Allied Industries * Connection: ASME B16.34 Valves Flanged, Threaded and Welding Ends Flange: ASME B16.5 Pipe Flanges and Flanged Fittings: NPS 1/2 through 24

Cast Steel Globe Valve

* Design: BS 1873: Steel Globe Valve and Globe Stop and SDNR Globe (Screw Down Non Return Globe Valve) and Check Valves (Flanged and Butt- Welding Ends) for the Petroleum, Petrochemical and Allied Industries
* Connection: ASME B16.34 Valves Flanged, Threaded and Welding Ends
Flange: ASME B16.5 Pipe Flanges and Flanged Fittings: NPS 1/2 through 24

Flanged Steel Globe Valve

Flange End Steel Globe Valve is suitable to PN1.6-16.0Mpa and Working Temperature-29℃ to 550℃ in Oil,Chemical Industry,producing medicine, fertilizer and Electric Industry.Its function is to cut or connect pipe media. Its suitable is water, oil, steam, acid media etc. And its operation way has manual, gear, electric, pneumatic etc.



Cast steel Globe valve

Straight patteren body design
OS & Y,outside screw and yoke
BB,Bolted bonnet
Yoke intergral with bonnet
Rising stem and handwheel
Loose disc,choice of plug or ball
Renewable seat ring
Impact handwheel
