GearBox Datasheet

GearBox Datasheet

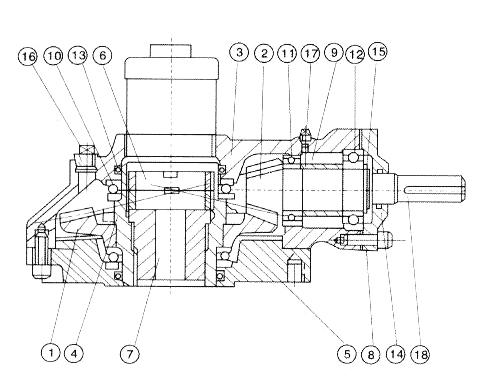

1.BEVEL GEAR
2.BEVEL PINION
3.HOUSING
4.DRIVE SLEEVE
5.BASE
6.LOCK NUT
7.DRIVE BUSH
8.END CAP
9.COLLAR
10.THRUSTBALL
11.BEARING
12.BEARING
13.O RING
14.O RING
15.CASKET
16.GREASE CUP
17.GREASE NIPPLE
18.KEY




MODEL
BA-000
BA-00
BA-0
BA-1
BA-2
BA-3
BAA-3
RATION
2.35:1
2.6:1
3.0:1
4.1:1
5.2:1
6.3:1
18:1
MAX REV(N:M)
360
480
735
1,470
2,940
4,000
6,000
MAX .THRUST CAPACITY
43,000
64,000
98,000
196,000
340,000
490,000
630,000
MAX. .stem dia MM(φ)
Copper driver bush
28
32
38
52
70
90
115
WEIGHT (Kg)
15
19
28
54
110
198
320

MODEL
SIZE
BA-000
BA-00
BA-0
BA-1
BA-2
BA-3
BAA-3
A
150
    150
170
233
306
370
395
B
35
60
60
65
65
65
70
C
25
40
55
55
55
60
60
D( φ )
85
100
130
200
230
260
260
E




390
410
510
F
155
180
210
285
340
410
420
J
40
75
92
107
107
118
118
G
130
130
160
180
215
285
295
H
80
80
85
97
142
160
178
L
M60 × 1.5
M70 × 1.5
M75 × 1.5
M89 × 2
M114 × 2.5


P( φ )
26-0.3
28-0.3
28-0.3
32-0.3
32-0.3
38-0.3
38-0.3
N
8
8
8
10
10
10
10
M
29.6-0.15
31.6-0.15
31.6-0.15
35.5-0.15
35.5-0.15
41.5-0.15
41.5-0.15
S( φ )
125
140
165
254
298
356
356
R( φ )
250
310
310
460
530
600
600
T
M12×20×4
M16×25×4
M20×25×4
M16×35×8
M20×35×8
M30×45×8
M30×45×8
U
55
60
75
85
110
145
175
V





15
20
