PNEUMATIC ACTUATOR
 | Applicable standards:
|

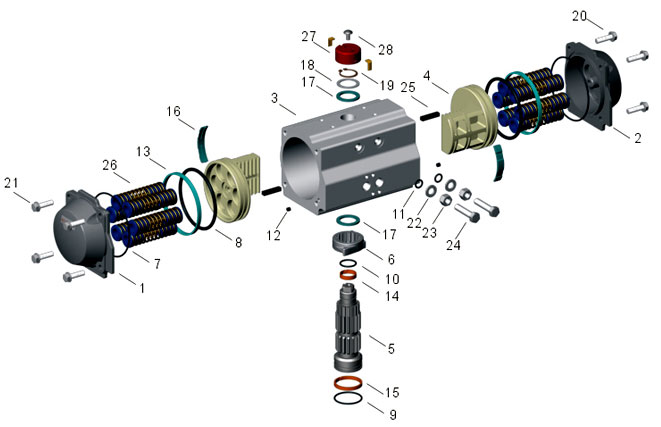

| Quantity | Parts name | Standard material | Applicable material | |
| 01 | 1(1) | Left end cap | Die-casting aluminum alloy | Stainless steel |
| 02 | 1(1) | Right end cap | Die-casting aluminum alloy | Stainless steel |
| 03 | 1 | Cylinder | Extruded aluminum alloy | Stainless steel |
| 04 | 2 | Piston | Die-casting aluminum alloy | ----------- |
| 05 | 1 | Output axis | Carbon steel | Stainless steel |
| 06 | 1 | Regulating cam | Stainless steel | ------------- |
| 07 | 2 | O-ring (end cap) | NBR | Fluorine or silicone rubber |
| 08 | 2 | O-ring (piston) | NBR | Fluorine or silicone rubber |
| 09 | 1 | O-ring (bottom of output shaft) | NBR | Fluorine or silicone rubber |
| 10 | 1 | O-ring (top of output shaft) | NBR | Fluorine or silicone rubber |
| 11 | 2 | O-ring (regulating bolt) | NBR | Fluorine or silicone rubber |
| 12 | 2 | Plug (cylinder) | NBR | Fluorine or silicone rubber |
| 13 | 2 | Bearing (piston) | Fluorocarbon composite materials | ----------- |
| 14 | 1 | Bearing (top of output shaft) | Nylon 46 | ----------- |
| 15 | 1 | Bearing (bottom of output shaft) | Nylon 46 | ----------- |
| 16 | 1 | Guide bearing (back of the piston) | Nylon 46 | ----------- |
| 17 | 2 | Thrust bearing (output shaft) | Nylon 46 | ----------- |
| 18 | 2 | Gasket (output shaft) | Nylon 46 | ----------- |
| 19 | 1 | Retaining ring | Stainless steel | ----------- |
| 20 | 8/12/16(2) | End cap bolt | Stainless steel | ----------- |
| 21 | 8/12/16(2) | End cap gasket | Stainless steel | ----------- |
| 22 | 2 | Gasket | Stainless steel | ----------- |
| 23 | 2 | Cap | Stainless steel | ----------- |
| 24 | 2 | Regulating bolt | Stainless steel | ----------- |
| 25 | 2 | Guide block | Nylon 66+30%FG | ----------- |
| 26 | 5-12 | Spring assembly | Alloy spring steel | ----------- |
| 27 | 1 | Position indicator | PP+30%GF | ----------- |
| 28 | 1 | Screw | Stainless steel | ----------- |
1、Indicator
Position indicator with NAMUR is convenient for mounting accessories such as Limit Switch box, positioner and so on.
2、Pinion
The pinion is high-precision and integrative,made form nickelled-alloy steel, full conform to the latest standards of ISO5211,DIN3337,NAMUR. The dimensions can be customized and the stainless steel is available.
3、Actuator Body
According to the different requirements, the extruded aluminum alloy ASTM6005
Body can be treated with hard anodized, powder polyester painted ( different
colours is available such as blue, orange, yellow etc.),PTFE or Nickel plated.
4、End caps
Die-casting aluminum powder polyester painted in different colours, PTFE or Nickel plated.
5、Pistons
The twin rack pistons are made form Die-casting aluminum treated with Hard anodized or made form Cast steel with galvanization. Symmetric mounting position, long cycle life and fast operation, reversing rotation by simply inverting the pistons.
6、Travel adjustment
The tow independent external travel stop adjustment bolts can adjust±5°at both open and close directions easily and precisely.
7、High performance springs
Preloaded coating springs are made form the high quality material for resistant to corrosion and longer service life, which can be denounced safelyand conveniently to satisfy different requirements of torque by changing quantity of springs.
8、Bearings & Guides
Made form low friction, long-life compound material, to avoid the direct contact between metals. The maintenance and replacement are easy and convenient.
9、O-rings
NBR rubber O-rings provide trouble-free operation at standard temperature ranges.For high and low temperature applications Viton or Silicone
Position indicator with NAMUR is convenient for mounting accessories such as Limit Switch box, positioner and so on.
2、Pinion
The pinion is high-precision and integrative,made form nickelled-alloy steel, full conform to the latest standards of ISO5211,DIN3337,NAMUR. The dimensions can be customized and the stainless steel is available.
3、Actuator Body
According to the different requirements, the extruded aluminum alloy ASTM6005
Body can be treated with hard anodized, powder polyester painted ( different
colours is available such as blue, orange, yellow etc.),PTFE or Nickel plated.
4、End caps
Die-casting aluminum powder polyester painted in different colours, PTFE or Nickel plated.
5、Pistons
The twin rack pistons are made form Die-casting aluminum treated with Hard anodized or made form Cast steel with galvanization. Symmetric mounting position, long cycle life and fast operation, reversing rotation by simply inverting the pistons.
6、Travel adjustment
The tow independent external travel stop adjustment bolts can adjust±5°at both open and close directions easily and precisely.
7、High performance springs
Preloaded coating springs are made form the high quality material for resistant to corrosion and longer service life, which can be denounced safelyand conveniently to satisfy different requirements of torque by changing quantity of springs.
8、Bearings & Guides
Made form low friction, long-life compound material, to avoid the direct contact between metals. The maintenance and replacement are easy and convenient.
9、O-rings
NBR rubber O-rings provide trouble-free operation at standard temperature ranges.For high and low temperature applications Viton or Silicone
DOUBLE ACTION ACTUATORS
Air to Port A forces the pistons outwards, causing the pinion to turn counterclockwise while the air is being exhausted from Port B.
Air to Port B forces the pistons inwards, causing the pinion to turn clockwise while the air is being exhausted from Port A.
Air to Port A forces the pistons outwards, causing the pinion to turn clockwise while the air is being exhausted from Port B.
Air to Port B forces the pistons inwards, causing the pinion to turn counterclockwise while the air is being exhausted from Port A.
Air to Port B forces the pistons inwards, causing the pinion to turn clockwise while the air is being exhausted from Port A.
Air to Port A forces the pistons outwards, causing the pinion to turn clockwise while the air is being exhausted from Port B.
Air to Port B forces the pistons inwards, causing the pinion to turn counterclockwise while the air is being exhausted from Port A.
Operating conditions
1.Operating media
Dry or lubricated air, or the non-corrosive gases
The maximum particle diameter must less than 30μm
2.Air supply pressure
The minimum supply pressure is 2.5 Bar
The maximum supply pressure is 8 Bar
3.Operating temperature
Standard:-20°C~+80°C
Low temperature:-35°C~+80°C
High temperature:-15°C~+150°C
4.Travel adjustment
Have adjustment range of ±5°
for the rotation at 0°and 90°
5.Application
Either indoor or outdoor
1.Operating media
Dry or lubricated air, or the non-corrosive gases
The maximum particle diameter must less than 30μm
2.Air supply pressure
The minimum supply pressure is 2.5 Bar
The maximum supply pressure is 8 Bar
3.Operating temperature
Standard:-20°C~+80°C
Low temperature:-35°C~+80°C
High temperature:-15°C~+150°C
4.Travel adjustment
Have adjustment range of ±5°
for the rotation at 0°and 90°
5.Application
Either indoor or outdoor
The new AT rack& pinion pneumatic actuator, combined with the latest national and international technology, with the innovative and optimized CAD three-dimensional model design, beautiful and compact appearance as well as modern shape, is manufactured by Windmill Valve Co., Ltd. It adopts new materials and processes, to enable more reliable quality and performance of products; it’s more economical, with various specifications and models; since the product is in complete consistence with international standard technical specifications, it can meet current and future requirements.
