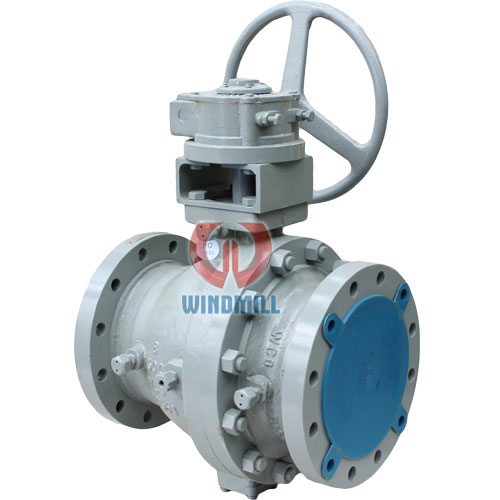

API ball valves
API ball valves feature: a full line product offering with API ball valve ranging in 2"-42", ANSI classes 150# - 2500#, forged steel ball valve bolted or all welded body, close coupled trunnion block design for low operating torques, secondary seat sealant feature.WINDMILL API-6D ball valve are offered with self relieving seats or optional double piston sealing. Special seat compounds are also available. Each valve meets, API-6D, API 6FA and Nace requirements. Options include stem extensions, actuators, pipe pups and specialized coatings.
 | API ball valve 's PDF file |
API ball valve applicable Standards
Ball valve : API 6D
Fire safe : API 607
Anti static : API 608
Face to face: ASME B 16.10
End flanges : ASME B 16.5
Butt welding ends : ASME B 16.25
Inspection and test : API 598 / API 6D
API ball valve Design Description :
Full port design & Reduced bore & Long patten
BB, Bolted bonnet, split body
Three piece body for 12" or above
Trunnion mounted ball type
Blow-out proof stem
Fire safe construction
Anti static device
Stopper device
ISO 5211 Mouting pad
Flanged or buttwelding ends .
Size1/2 -56 inch.
Pressure: Class150LB-1500LB.
Material:WCB,LCB,CF8,CF8M,CF3,CF3M, A105,LF2,F304,F316,F304L,F316L.
Design & Manufacture Std.: ASME B16.34,API608,API6D.
Fire Safe Std: API607.
Face to Face Std.:ASME B16.10.
End Connection Std.: ASME B16.5.
Mounting padISO5211.
Test Standard: API598, API 6D.
Structure Type:Floating ball valve, Full bore, trunnion ball valve,..
Operated way: Lever,Pneumatic ball valve, Electric .
WINDMILL Ball Valve Factory
In 2009, WINDMILL was created as a automatic division. This division manufactures actuators and accessories for butterfly valve and ball valve. The ball valve products range: API ball valve, floating ball valve, trunnion ball valve, pipeline ball valve, pneumatic ball valve, soft seal ball valve, Three way ball valve, High pressure ball valve, Metal to metal sealed ball valve.
